Product

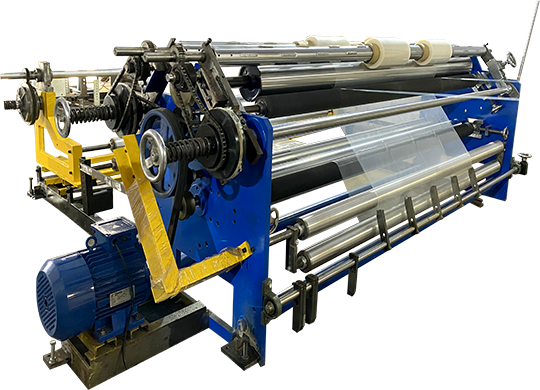

This machine can used for Coating you BOPP Film to make BOPP Adhesive Tapes in this machine is suitable for Coating your BOPP Film with your required GSM this is machine is made specially for 23 micron BOPP Film can Coat up to 30 Micron of Adhesive you can use water based adhesive ins this machine. We are also providing one stop solution for each and every process of BOPP film & chemicals. We are also supplying Heating system as per your request.

we have 2 or 3 options of heating system as per mentioned below

• Diesel Heating system
• Electrical Heating system
• Pellet burner & heating system attached with Hot air exchanger machine speed is 20 MPM to 60 MPM as per the machine witch you chose

We can also automise this machine as per your requirement.

• Max. Web width 1320 MM 52”
• Min. Width 288 mm 12”
• Min. Slit Width 24 mm 1”
• Max. Reel Dia. Unwind 254 mm 10”
• Max. Reel Weight 200 kg 440 Pound
• Rewinding meter max 500 meter 11 kg
• Max. Web Speed 120 MPM 393 FPM
• Unwind Core ID 76 MM 3”
• Rewind Core ID 76 mm 3”

Specifications:

• Rewinding Shafts 4 NOS Aluminium Made
• Unwinding Shafts 1 NOS MS En-8
• Banana Rollers 1 NOS Rubber Made
• Knurling Rollers 3 NOS MS En-8
• Guide Rolls 4 NOS Aluminium made

Extras:

• Cutter Blade Assembly with Chrome plated shafts & 12 mm distance pieces
• Blade holding rod with cutting blades arrangement connected with manual gear box
• Jumbo roll Left right moment system for easy to operate
• Spring locking @rewinding shaft for fast loading & unloading
• 5 HP branded AC Motor
• 5 HP Branded AC Drive
• Penal Section : Start / Stop / Length Counting Meter / Speed controller port & Emergency stop
• Banana roller assembly for removing wrinkles
• Heavy duty structure
• Suitable for 1320 mm jumbo rolls
