Product

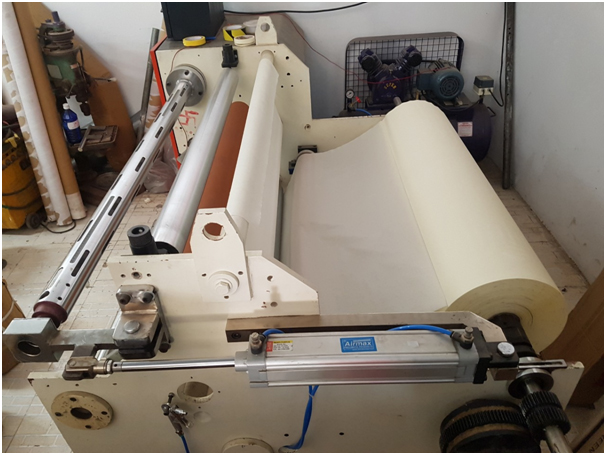

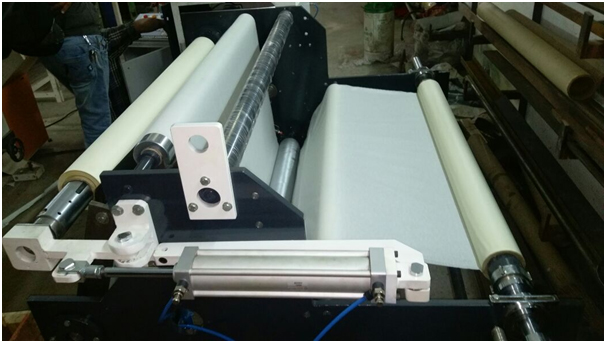

This machine is used for Rewinding & unwinding Adhesive material. This machine comes with heavy duty M.S Structure.

This machine is fully automatic grade Rewinding machine comes with Air Shaft for Easy Loading & Unloading System with Auto lock & unlock with single one switch operation

We have 2 models in this Masking tape Rewinding machine 1. 1350 MM Suitable for 1200 MM Jumbo rollers 2. 1650 MM working width machine suitable for 1550 MM Jumbo Rollers

We had designed this machine for Masking tape, Abro Tape, Tissue tape and Foam Tape, This machine can easily rewind this all material

Technical Specification:

• 1. Working width : 1350 MM & 1650 MM
• 2. Unwinding Diameter: suitable for 2000 Meter to Max 4000 Meter Jumbo Rollers
• 3. Web Speed: 10 TO 150 Meter / minute
• 4. Rewinding Diameter: min. 10 Meter to Max 200 Meters
• 5. Rubber Rolls : 1 Nip Roller & 1 Banana Roller Total 2 NOS
• 6. Extra System : Wrinkle Removing System
• 7. Motor : 5 HP AC Drive Motor
• 8. Penal : Auto Stop, Length Counting Meter, Speed Adjustable Sensor & Emergency Stop
• 9. Operation System: Fully Automatic System
